Product number:
WDC-4W-PS
Special feature: ★ Real-time monitoring of pipeline pressure and water pump linkage. ★ Analyze whether there is a pipe collapse phenomenon in the world network through changes in pressure values.
Technical specifications:
| Parameter | Specifications | Parameter | Specifications |
|---|---|---|---|
| Operating voltage | 5.0 VDC | Performance guarantee pressure | 2.0MPa |
| Range of working temperature | -20～60℃ | Destroying pressure | 3.0MPa |
| Storage temperature range | -40～125℃ | Response time | ≤2.0 |

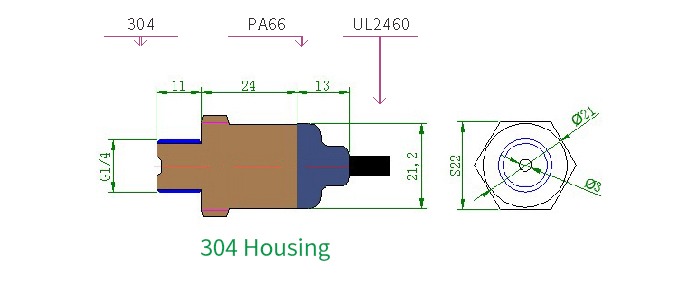

| Quiescent current | 2.8mA ±0.1mA | Installation method | Threaded installation |
| Accuracy | ±0.5%（0-55℃）%FS | Protection level | IP68 |
| Pressure | 0〜1.0Mpa | Cycle life | 10，000，000 |
