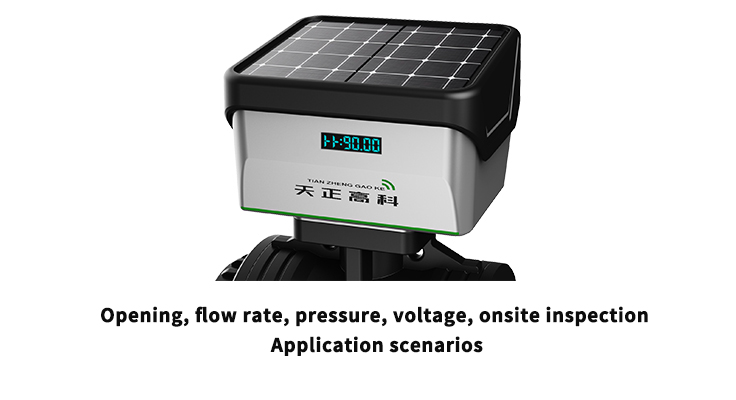

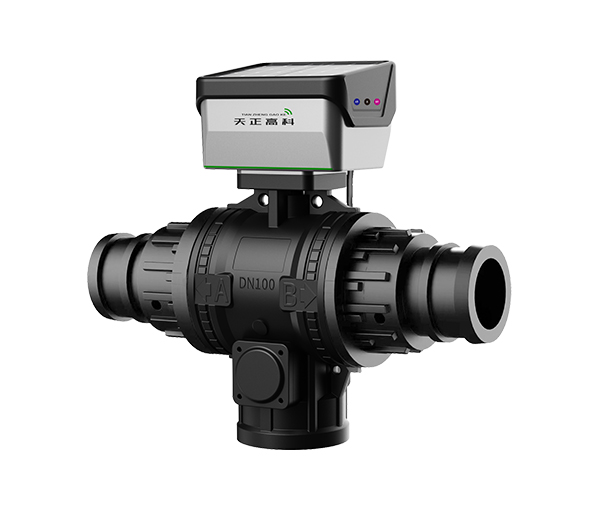

The wireless electric ball valve (WEV-Q100) WEC series supports LoRa or 4G wireless network transmission without the need for a power cord. Comes with a solar panel and battery, and can also be connected to a pole to enhance signal transmission. In harsh environments, it is possible to control the opening and closing of electric valves more than 30000 times. Support real-time detection of battery level and signal strength, allowing users to be informed in advance of replacement without affecting production operations.

The valve body is made of PP basalt fiber reinforced material, which is resistant to high temperature, freezing, and sunlight. Adopting special steel ball body, wear-resistant and corrosion-resistant.

Product model: WEV-Q100 (4G/LoRa)

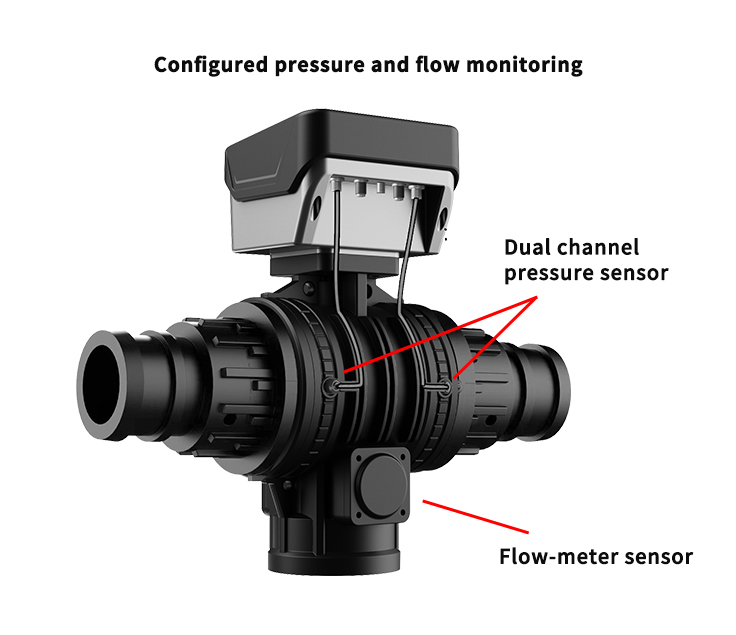

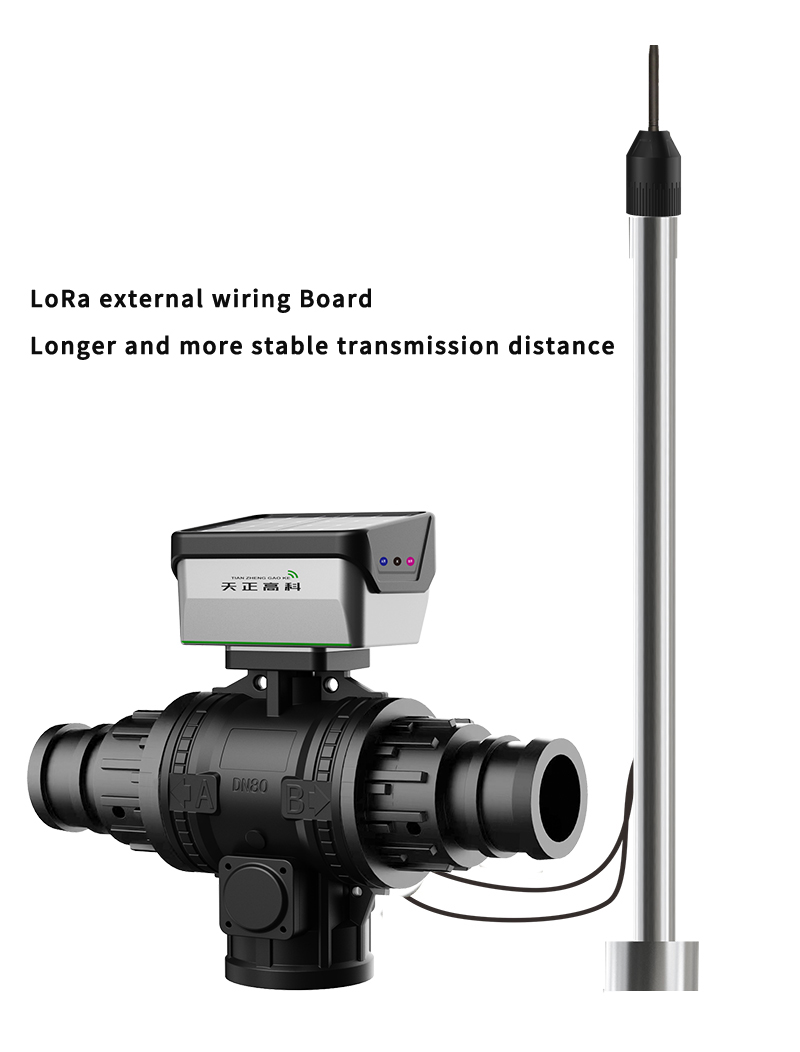

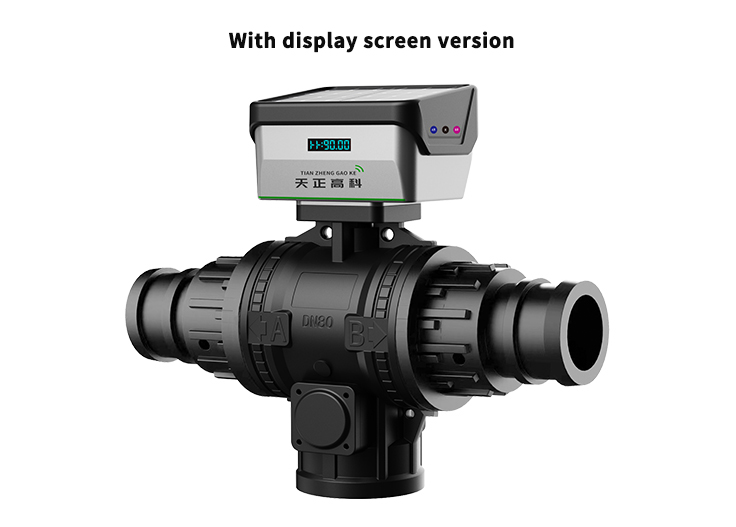

Features: ★ A single valve can be configured with a flow meter and a dual-way pressure gauge, and the data is uploaded to the cloud platform in real time. ★ It can be customized with its own screen version, the screen displays the dual-channel pressure and cumulative flow data in a loop, and the current opening is displayed in real time during the switching process. ★ Set the target opening pressure freely, and the valve will automatically adjust the valve opening until the target value is reached. ★ Support Lora/4G wireless control, and the distance from the gateway can reach 1000~5000m. ★ Real-time display of valve switch status ★ Removable modular battery for easy storage and charging in winter. ★ The upper shell is injection molded with heat-resistant, low-temperature resistant, PPO alloy material. ★ The transmission gear is made of stainless steel precision casting spindle and is equipped with a large module steel main gear. ★ The circuit board silicone filling is moisture-proof, anti-condensation and impact-resistant. ★ Support remote OTA upgrades ★ IP68 rating ★ The external interface adopts aviation plug, which has high stability, durability and good water proof.

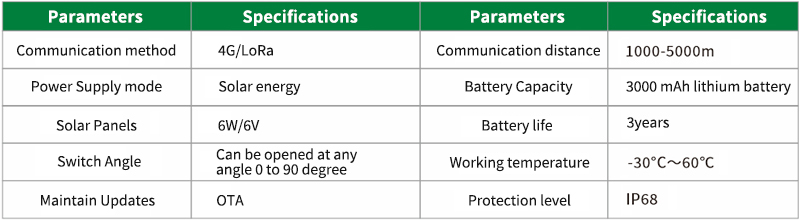

Technical Specification:
